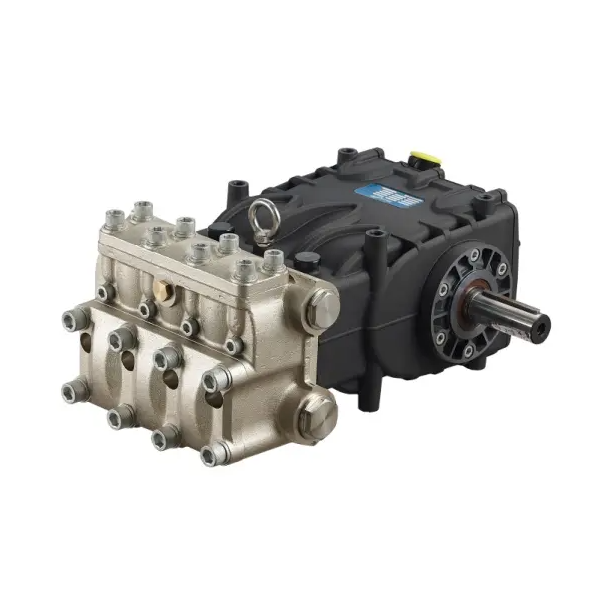

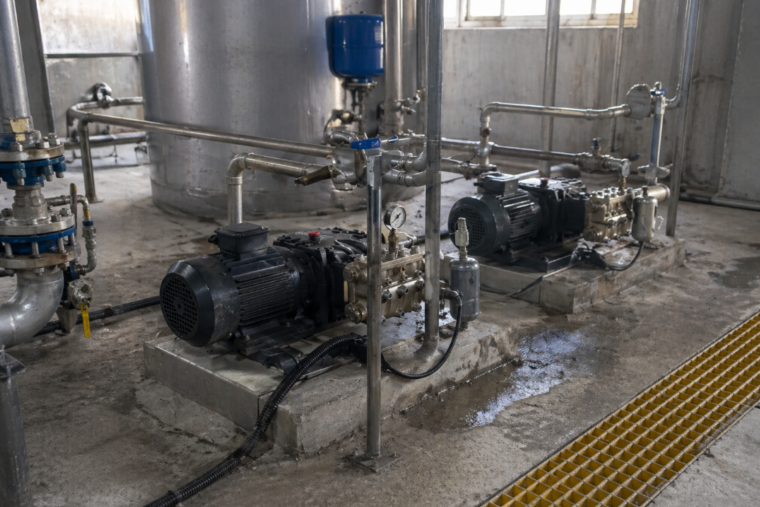

Winspan industrial high-pressure pump integrates super wear-resistant ceramic plunger and forged stainless steel pump head, which can provide 2800 bar extreme pressure and is the core power for fluid transportation and cleaning in chemical, paper and energy industries. As a source manufacturer with a production base of 30,000 square meters, Winspan has greatly reduced the procurement process through the whole industry chain production model, providing you with highly competitive ex-factory prices and more reliable customized delivery cycles.

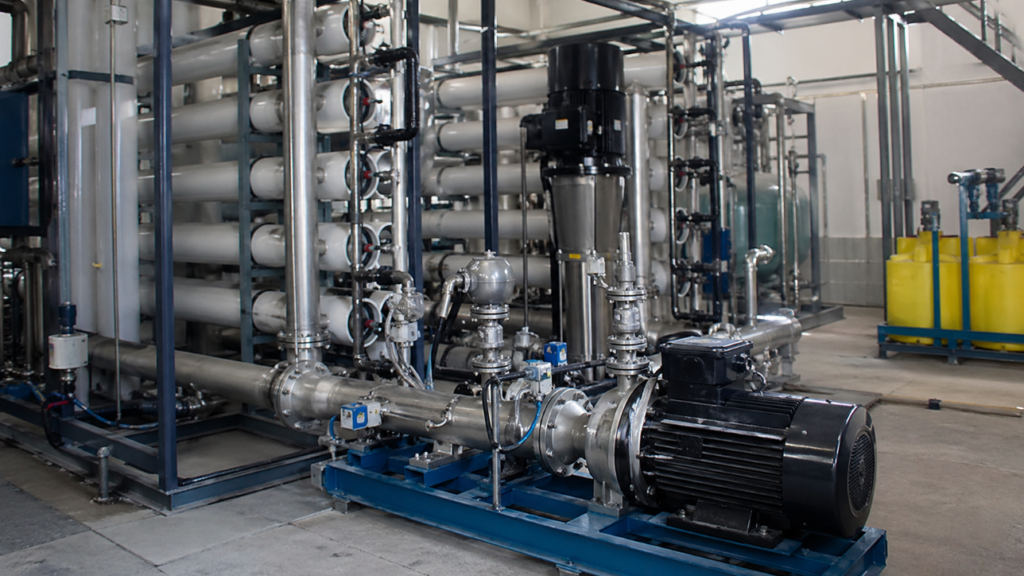

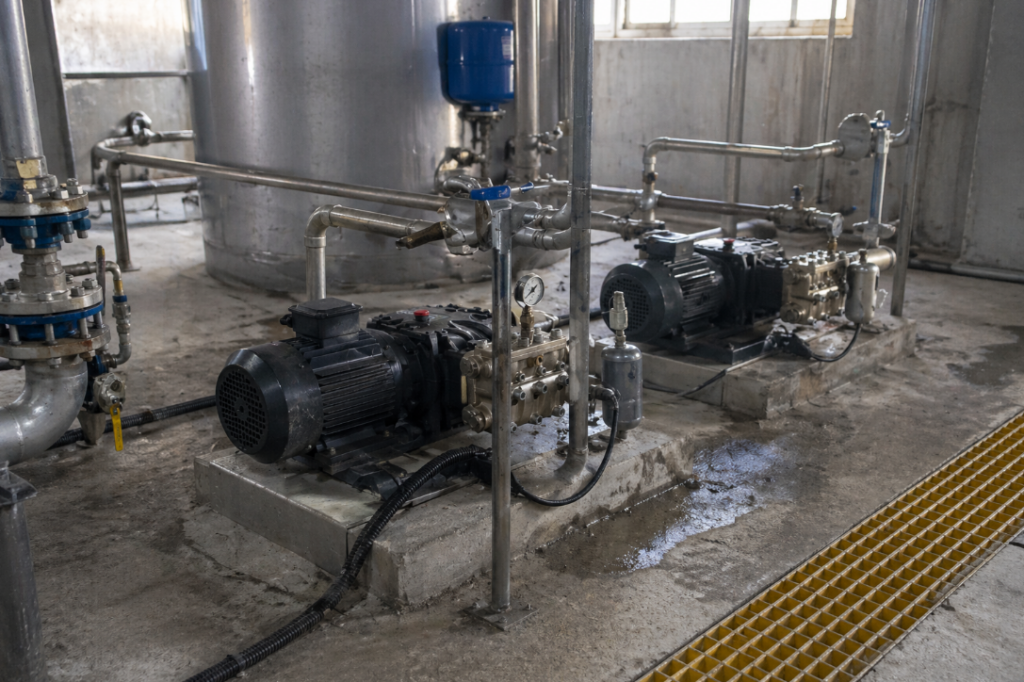

Such groups need to embed pump sets into large cleaning lines or fluid control systems. The highly standardized interface and PLC protocol compatibility provided by the Winspan allow integrators to quickly build stable and reliable automated industrial work units.

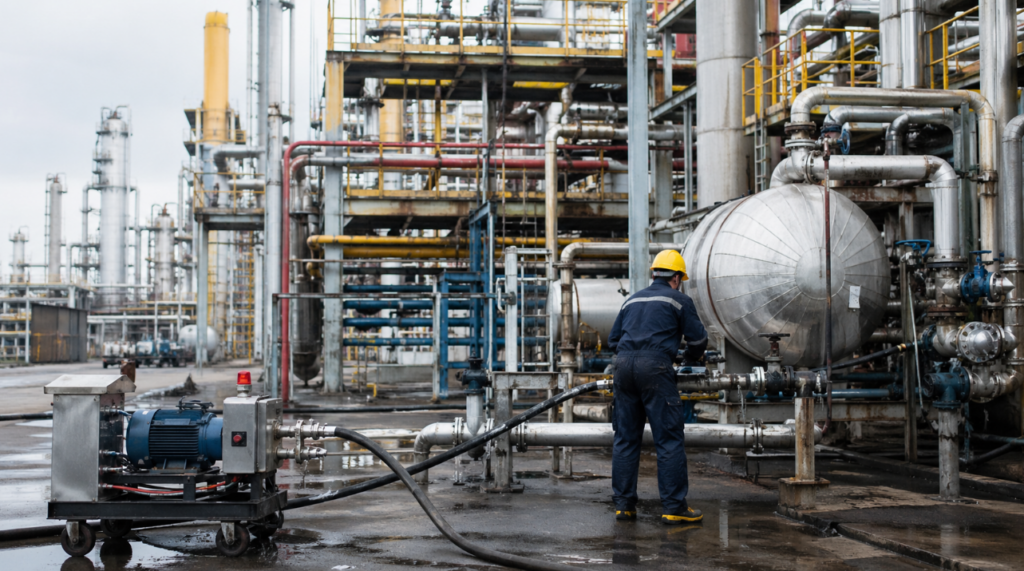

responsible for daily cleaning and medium circulation of heat exchangers, reactors and storage tanks. This group is concerned about the continuous operation of equipment in corrosive environments, Winspan the high chemical resistance of industrial pumps greatly reduces their maintenance frequency.

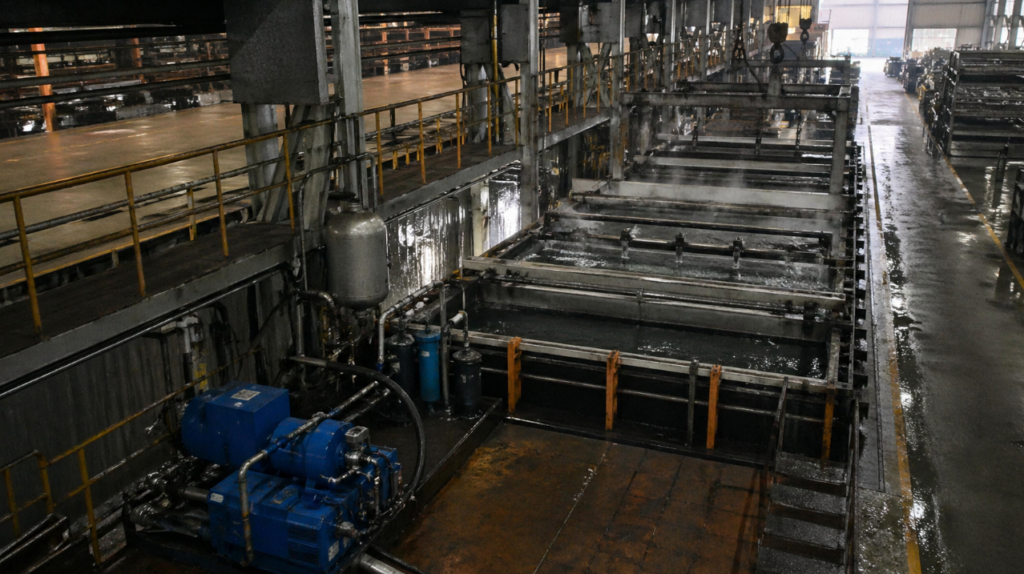

responsible for high-pressure cleaning, spray cooling or fire pressurization system of the whole plant. Winspan the large flow and high reliability of the industrial-grade high-pressure pump, it can solve a variety of high-pressure hydrodynamic needs in the factory in one stop, and effectively reduce the total equipment holding cost of the enterprise.
Extremely stable high-pressure jets are required in casting cleaning, steel descaling or large component stripping processes. The Winspan ultra-high pressure series pump sets can provide extremely strong kinetic energy output, which is the key to improving production efficiency in this type of manufacturing industry.
the plunger is made of aviation-grade alumina ceramic material with high surface hardness and chemical resistance. Compared with the traditional metal plunger, the wear rate is reduced by more than 65%, and the seal replacement cycle is effectively extended to 2000 hours when conveying media containing fine particles or strong acid and alkali.
316L industrial grade stainless steel is selected for overall forging, which eliminates the internal pore defects that may exist in the casting process, and the fatigue strength is increased by 40%. Ensure that the pump head core components have more than 10 years of operating life under high-frequency high-pressure impact loads.
adopts crankshaft connecting rod type reciprocating motion structure, with power end forced lubrication system, mechanical transmission efficiency is as high as 92%. This balanced design significantly suppresses the output pressure pulsation, controls the operating noise of the system within 85 decibels, and protects the safety of the rear-end sensor.
supports variable frequency drive control, and the flow can be adjusted steplessly within the range of 20% to 100% of the rated parameters. System integrators can perform real-time matching according to the flow fluctuation demand of the production line, which greatly improves the energy efficiency and reduces the process control error.
unique seal cover design allows operation and maintenance personnel to complete the water seal replacement without removing the pump head and pipeline. The design drastically reduces routine maintenance downtime from 4 hours to 45 minutes, ensuring continuous operation of industrial production lines.
factory pre-installed high-precision safety valve and digital pressure monitoring transmitter, response frequency is less than 0.1 seconds. In the case of accidental blockage of the pipeline, it can quickly cut off the power or automatically relieve the pressure to prevent the instantaneous high pressure from causing irreversible damage to the industrial integrated system.
| Technical performance | Standard Industrial Type | Heavy Duty Industrial Type | Ultra Max (Extreme High Voltage) |
| Rated pressure | 50 – 500 bar | 500 – 1500 bar | 1500 – 2800 bar |
| Maximum flow | 15 – 120 liters per minute | 120 – 450 liters per minute | 450 – 1000 liters per minute |
| plunger diameter | 18 – 28 mm | 30 – 45 mm | 50 – 75 mm |
| Drive power | 11 – 45 kilowatts | 55 – 160 kilowatts | 200 – 400 kilowatts |
| Lubricating oil quantity | 2 – 5 liters | 8 – 15 liters | 20 – 45 liters |
| Influent water quality | Industrial purified water | 5-micron fine water filtration | 1-micron ultrafine water filtration |
The Winspan industrial high-pressure pump adopts internal spiral reduction gear technology at the transmission end. Compared with the common belt transmission scheme on the market, not only the transmission efficiency is increased by 12%, but also the problem of belt wear dust interfering with the precision environment and transmission slippage is completely solved. At the same time, our stainless steel pump body after plasma nitriding treatment, the surface hardness increased by 25%, in response to high salinity water shows excellent anti cavitation performance.
aiming at the pain point that the seal of conventional industrial pump is easy to be damaged by high temperature, the forced cooling water circulation channel is Winspan optimized, the working temperature of the sealing area is reduced by 20 degrees, and the problem of frequent melting loss of the sealing ring caused by long-term operation is solved.
in view of the problem that ordinary cast iron pump head in chemical integrated system is easy to be corroded by acidic water quality, the Winspan adopts 316L stainless steel and teflon sealing components to solve the medium leakage pain point caused by corrosion damage of pump body in industrial environment.
in view of the impact of instantaneous pressure jump in the pipeline on the back-end sensor, the Winspan industrial pump has a built-in multi-stage damping shock absorption energy dissipation chamber to control the pressure pulsation rate within 3%, thus ensuring the measurement accuracy and service life of the downstream flowmeter and pressure gauge.
confirm that the inlet pressure is stable above 2 bar and the flow is sufficient before starting. A water inlet filter of more than 80 mesh must be installed, and it is strictly forbidden to open the industrial high-pressure pump under the condition of poor water inlet or no water.
confirm that the lubricating oil of the crankcase is located in the center of the window, and first run it at low speed and no load for 5 minutes to drain the road air. Observe each sealing surface for abnormal leakage, and gradually load after the system pressure is stable.
motor current and pump body vibration shall be monitored during operation. Check the lubricating oil temperature every 2 hours to ensure that the oil temperature is lower than 80 degrees Celsius to prevent mechanical wear due to the decrease of oil viscosity.
reduce the pressure to zero before stopping the operation, and then cut off the power supply. In cold areas or long-term shutdown, the residual water in the pump cavity should be drained to prevent freezing or medium precipitation from damaging the ceramic plunger.
Winspan industrial high-pressure pump integrates super wear-resistant ceramic plunger and forged stainless steel pump head, which can provide 2800 bar extreme pressure and is the core power for fluid transportation and cleaning in chemical, paper and energy industries. As a source manufacturer with a production base of 30,000 square meters, Winspan has greatly reduced the procurement process through the whole industry chain production model, providing you with highly competitive ex-factory prices and more reliable customized delivery cycles.
50–2800 bar
Working pressure
3-1000 liters per minute
Flow range
Alumina Ceramic
Plunger Material
the plunger is made of aviation-grade alumina ceramic material with high surface hardness and chemical resistance. Compared with the traditional metal plunger, the wear rate is reduced by more than 65%, and the seal replacement cycle is effectively extended to 2000 hours when conveying media containing fine particles or strong acid and alkali.
316L industrial grade stainless steel is selected for overall forging, which eliminates the internal pore defects that may exist in the casting process, and the fatigue strength is increased by 40%. Ensure that the pump head core components have more than 10 years of operating life under high-frequency high-pressure impact loads.
adopts crankshaft connecting rod type reciprocating motion structure, with power end forced lubrication system, mechanical transmission efficiency is as high as 92%. This balanced design significantly suppresses the output pressure pulsation, controls the operating noise of the system within 85 decibels, and protects the safety of the rear-end sensor.
supports variable frequency drive control, and the flow can be adjusted steplessly within the range of 20% to 100% of the rated parameters. System integrators can perform real-time matching according to the flow fluctuation demand of the production line, which greatly improves the energy efficiency and reduces the process control error.
unique seal cover design allows operation and maintenance personnel to complete the water seal replacement without removing the pump head and pipeline. The design drastically reduces routine maintenance downtime from 4 hours to 45 minutes, ensuring continuous operation of industrial production lines.
factory pre-installed high-precision safety valve and digital pressure monitoring transmitter, response frequency is less than 0.1 seconds. In the case of accidental blockage of the pipeline, it can quickly cut off the power or automatically relieve the pressure to prevent the instantaneous high pressure from causing irreversible damage to the industrial integrated system.
| Technical performance | Standard Industrial Type | Heavy Duty Industrial Type | Ultra Max (Extreme High Voltage) |
| Rated pressure | 50 – 500 bar | 500 – 1500 bar | 1500 – 2800 bar |
| Maximum flow | 15 – 120 liters per minute | 120 – 450 liters per minute | 450 – 1000 liters per minute |
| plunger diameter | 18 – 28 mm | 30 – 45 mm | 50 – 75 mm |
| Drive power | 11 – 45 kilowatts | 55 – 160 kilowatts | 200 – 400 kilowatts |
| Lubricating oil quantity | 2 – 5 liters | 8 – 15 liters | 20 – 45 liters |
| Influent water quality | Industrial purified water | 5-micron fine water filtration | 1-micron ultrafine water filtration |
aiming at the pain point that the seal of conventional industrial pump is easy to be damaged by high temperature, the forced cooling water circulation channel is Winspan optimized, the working temperature of the sealing area is reduced by 20 degrees, and the problem of frequent melting loss of the sealing ring caused by long-term operation is solved.
in view of the problem that ordinary cast iron pump head in chemical integrated system is easy to be corroded by acidic water quality, the Winspan adopts 316L stainless steel and teflon sealing components to solve the medium leakage pain point caused by corrosion damage of pump body in industrial environment.
in view of the impact of instantaneous pressure jump in the pipeline on the back-end sensor, the Winspan industrial pump has a built-in multi-stage damping shock absorption energy dissipation chamber to control the pressure pulsation rate within 3%, thus ensuring the measurement accuracy and service life of the downstream flowmeter and pressure gauge.
Such groups need to embed pump sets into large cleaning lines or fluid control systems. The highly standardized interface and PLC protocol compatibility provided by the Winspan allow integrators to quickly build stable and reliable automated industrial work units.
responsible for daily cleaning and medium circulation of heat exchangers, reactors and storage tanks. This group is concerned about the continuous operation of equipment in corrosive environments, Winspan the high chemical resistance of industrial pumps greatly reduces their maintenance frequency.
responsible for high-pressure cleaning, spray cooling or fire pressurization system of the whole plant. Winspan the large flow and high reliability of the industrial-grade high-pressure pump, it can solve a variety of high-pressure hydrodynamic needs in the factory in one stop, and effectively reduce the total equipment holding cost of the enterprise.
Extremely stable high-pressure jets are required in casting cleaning, steel descaling or large component stripping processes. The Winspan ultra-high pressure series pump sets can provide extremely strong kinetic energy output, which is the key to improving production efficiency in this type of manufacturing industry.
confirm that the inlet pressure is stable above 2 bar and the flow is sufficient before starting. A water inlet filter of more than 80 mesh must be installed, and it is strictly forbidden to open the industrial high-pressure pump under the condition of poor water inlet or no water.
confirm that the lubricating oil of the crankcase is located in the center of the window, and first run it at low speed and no load for 5 minutes to drain the road air. Observe each sealing surface for abnormal leakage, and gradually load after the system pressure is stable.
motor current and pump body vibration shall be monitored during operation. Check the lubricating oil temperature every 2 hours to ensure that the oil temperature is lower than 80 degrees Celsius to prevent mechanical wear due to the decrease of oil viscosity.
reduce the pressure to zero before stopping the operation, and then cut off the power supply. In cold areas or long-term shutdown, the residual water in the pump cavity should be drained to prevent freezing or medium precipitation from damaging the ceramic plunger.
