How to Connect Water Hose to Pressure Washer Safely

In fact, it’s not that complicated: put the water pipe connector straight into the water inlet of the machine and tighten it by hand to prevent slippage. The most important thing is to pull the trigger of the spray gun before starting the motor to exhaust the air held inside.

Many people skipped the step of exhaust in order to save trouble. As a result, the air pressure soared at the moment of startup and the water pipe joint was violently collapsed. Today, we will take the specific operation steps of the 1 plate. We will teach you how to connect the equipment tightly and say goodbye to water leakage and high-pressure pipe explosion.

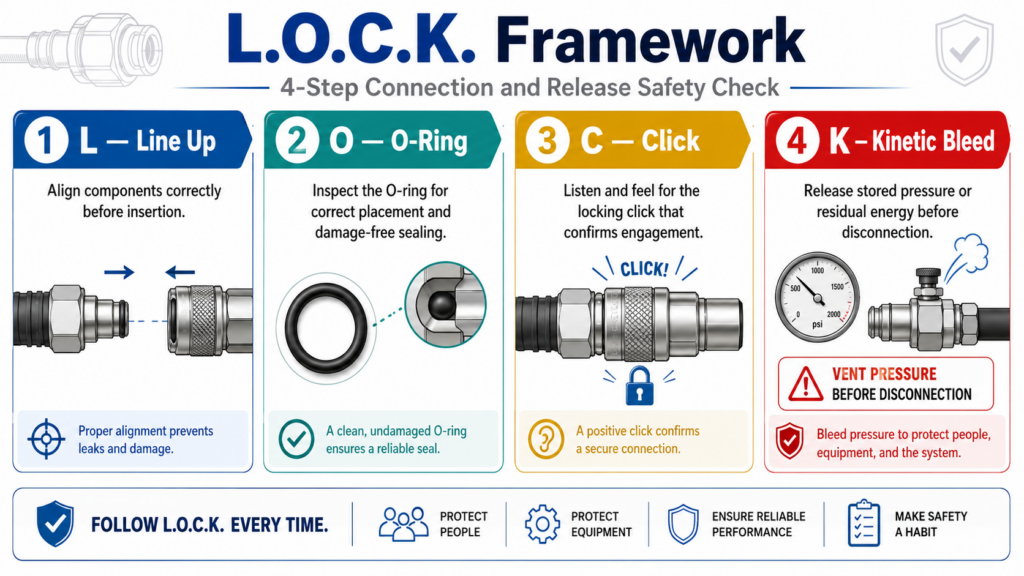

L.O.C.K. Blast Tube 4 Footwork

High-voltage equipment injuries, often in the joint accidental fall off. We have summarized a “L.O.C.K.” 4 step formula to ensure that every time you connect, you will be as stable as a mountain.

L-Line Up (absolute thread alignment, do not make it hard)

If the thread is not aligned, screw it hard and discard the water inlet every minute. Before turning the joint, be sure to ensure that the water pipe and the water inlet of the cleaning machine are completely parallel. Slightly crooked a little angle to hard twist will cause slippage. Once the thread is damaged, the bite force will be greatly reduced. When more than 2000 PSI (pounds per square inch) of high-pressure water rushes, the joint will immediately break and collapse.

O-O-Ring (check the O-ring: the most easily overlooked leakage point)

Sudden water leakage or pressure drop? Most of the O-ring is broken. Before connecting the pipe, don’t rush to get started, take a look inside the water inlet first, and make sure there is a round, crack-free rubber O-ring at the bottom. Rubber is easy to age and flatten if it is put in a stuffy garage for a long time. As long as it is found to be inelastic or deformed, replace it quickly, otherwise it will leak water.

C – Connect (pure hand tighten, don’t use tools)

The tool is definitely the nemesis of the inlet. To screw the joint, it is enough to rely solely on hand strength. Once you use a vise or wrench, too much force will often crush the internal rubber sealing ring directly-you wanted to prevent leakage, but instead you artificially created a water leak. If the hand is tightened and still leaks, it means that you either did not install the O-ring or the O-ring is broken, which has nothing to do with whether it is tightened or not.

K-Kinetic Bleed (Kinetic Exhaust: Key to Explosion-proof Tube)

Once the air in the pipe is compressed, the water pipe will become a dangerous “cannonball”. After connecting the pipe and turning on the faucet, don’t start the motor first! Pull the gun trigger for about 30 seconds. You will hear the “hissing” sound of deflation first, and when the air is exhausted, the water will flow out smoothly. Remember: air is compressed, but water is not. If the pump is directly ignited with air in it, the resulting kinetic energy shock wave can easily shatter the plastic joint.

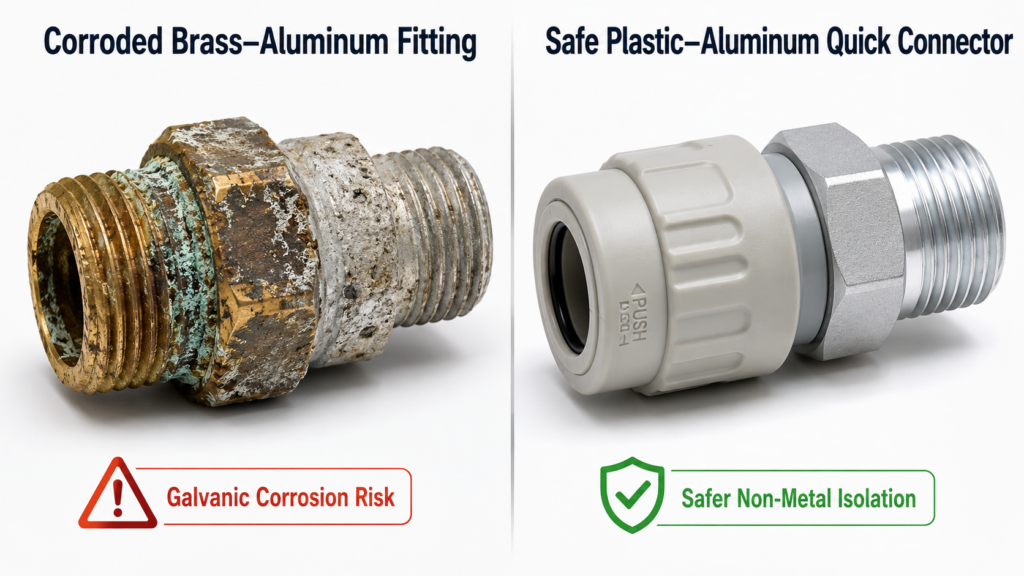

Pit-Avoidance Guide: The Trap Of Electrochemical Corrosion

Different metals are mixed, and the machine breaks down very quickly. In order to pursue durability, many people who build their own courtyards like to buy high-grade pure copper water pipe joints and screw them directly onto the aluminum water inlet of the gas high-pressure cleaner.

This is a big hole! Water acts as a conductor between different metals, causing “electrochemical corrosion”. In a few weeks, copper joints and aluminum threads will bite and rust together. At this time, if you want to break it hard, the fragile aluminum thread will definitely break for you to see. 1 the thread is wasted, the pipe will no longer be connected firmly. If the water inlet of your washing machine is made of aluminum, listen to me, and be honest and practical with plastic or stainless steel quick-release connectors.

Real-World Burst Pressure Data: Quick Connects vs. Threaded Fittings

Measured Compression Data: Quick Release Head Vs Threaded Joint

How much pressure does the joint take to burst open? We conducted limit tests on common joints in the laboratory. If you want to use it safely, you have to choose the right accessories according to the output power of the machine.

Connection Type	Material	Safety Threshold (PSI)	Risk of Sudden Detachment
Standard Garden Thread	Cheap Plastic	1,500 PSI	High (Threads stretch under heat)
Standard Garden Thread	Solid Brass	3,500+ PSI	Low (Assuming no cross-threading)
Push-to-Click Quick Connect	Polymer/Brass blend	4,000 PSI	Very Low (Features an internal lock collar)

Upgrade The Quick-Release System, Save Effort And Save Life.

With the quick release system, you no longer have to twist the tube like twist twist. It relies on a locking ring with a spring, and the internal ball bearing is used to jam the joint.

Specific operation: pull the locking ring on the female head back 1, insert the male head to the end, and then loosen the locking ring. Here comes the most crucial step: pull the pipe back hard! Make sure that the locking ring has fully rebounded to the front position. If it is still stuck halfway, the ball inside is not locked at all. Once you pull the trigger, the unlocked quick release head will bounce out like a bullet.

FAQ

Do high-pressure water pipes really burst and hurt people?

Absolutely it will. Hoses that are damaged by aging or joints that are not locked can easily burst. You know, if the water column with 3000 PSI pressure from a small crack, can directly cut through the skin, causing serious subcutaneous tissue damage. Before connecting the pipe, be sure to check whether there are deep scratches on the surface of the hose or whether the steel wire mesh inside is exposed.

Why was the water pipe blown off as soon as the machine was turned on?

Either your thread is not tight, or the locking ring of the quick release head is not locked in place. There is also a 1 situation: the air in the pump is suppressed, resulting in extreme fluctuations in the water pressure at the moment of startup, and the pipe is abruptly pushed out. Remember, be sure to exhaust the air in the system before starting up.

Do you need to buy a special garden hose to supply water to the washing machine?

No need. The common household 5/8 inch heavy-duty garden hose is more than enough to deal with the pressure of ordinary tap water. The really deadly extreme high pressure is generated after the water enters the machine, which is why the water outlet pipe (high pressure pipe) of the washing machine is always thick and covered with reinforcement layers.

Do I need to wrap raw material tape (waterproof tape) to connect high-pressure water pipes?

Don’t bother! The water inlet end of the garden water pipe and the high-pressure cleaner are all sealed and leak-proof by the rubber O-ring inside. On the contrary, wrapping the raw material belt will jam the thread, resulting in the joint not being screwed to the end, unable to compress the O-ring, and finally making a mess of self-defeating and leaking.

What happens if you turn on the washing machine directly without connecting the water source?

The internal water pump will burn directly in less than a minute. The pump runs on a steady stream of cold water for lubrication and cooling. As long as the 1 dry burn, the internal metal will be violent friction, resulting in the entire pump completely scrapped.ic pump failure.
