High Pressure Water Jet Pump Global Supplier - Direct Sale
The Winspan high-pressure water jet pump provides a super impact force of 50 to 2800 bar. It is the core power equipment for ship rust removal, municipal dredging and industrial deep cleaning. As a source manufacturer with a production base of 30,000 square meters, Winspan eliminate middleman costs through vertically integrated production processes, providing you with highly competitive ex-factory prices, flexible customization solutions and fast delivery response.
High pressure water jet pump for people

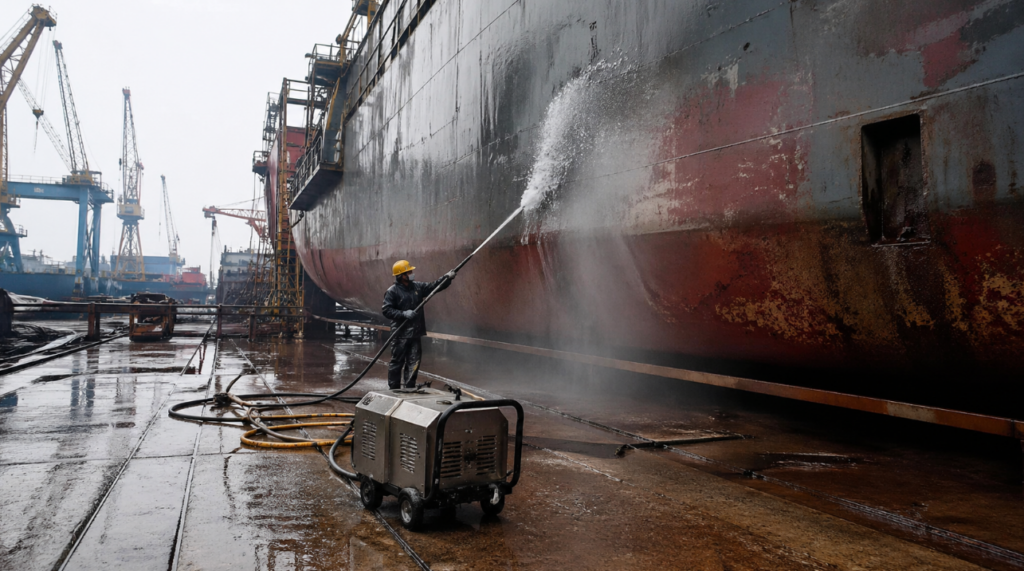

Ship repairers and maintainers
this group needs to frequently clean up the hull before marine organisms and rust removal and painting. The ultra-high pressure jet provided by the Winspan high-pressure water jet pump can perfectly replace the traditional sandblasting process, and efficiently complete large-area hull maintenance tasks while meeting environmental emission standards.

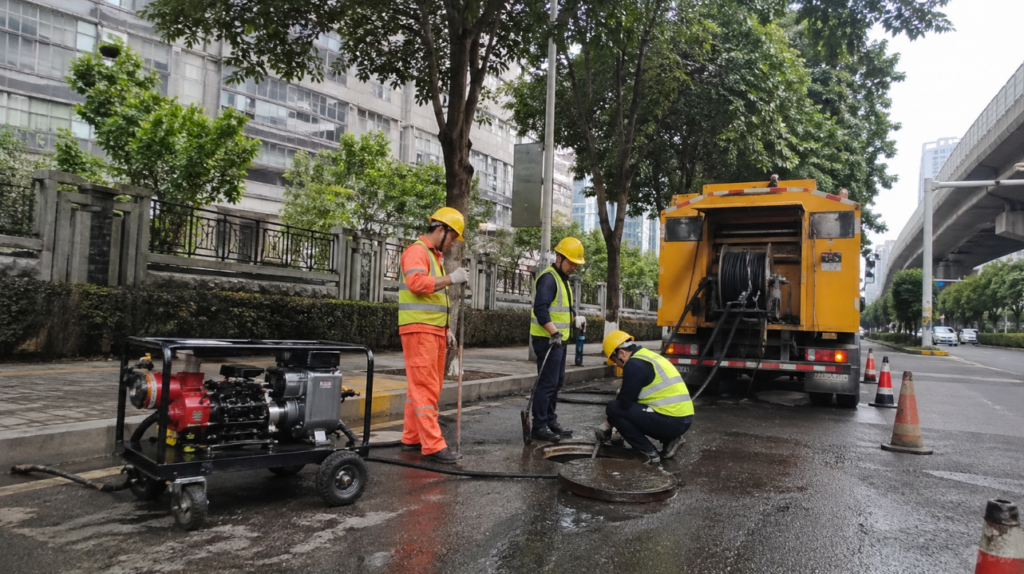

Municipal pipe network maintenance engineering team
responsible for the daily dredging and emergency cleaning of urban underground drainage system and sewage pipe network. The large flow pump set can generate enough thrust to drive the nozzle to travel in the long-distance pipeline and quickly remove obstacles such as silt, grease blocks and tree roots.

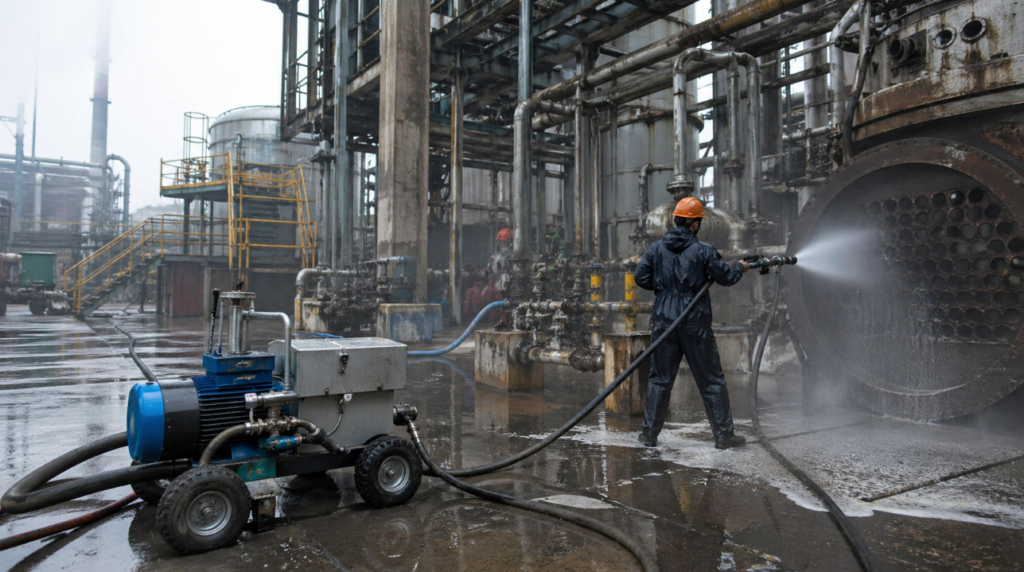

Petrochemical cleaning service provider
During the overhaul of refineries and chemical plants, it is necessary to deeply clean the inside of heat exchangers, reactors and storage tanks. The high-pressure continuous and stable output of this equipment can ensure that the chemical residue is completely removed without damaging the substrate.

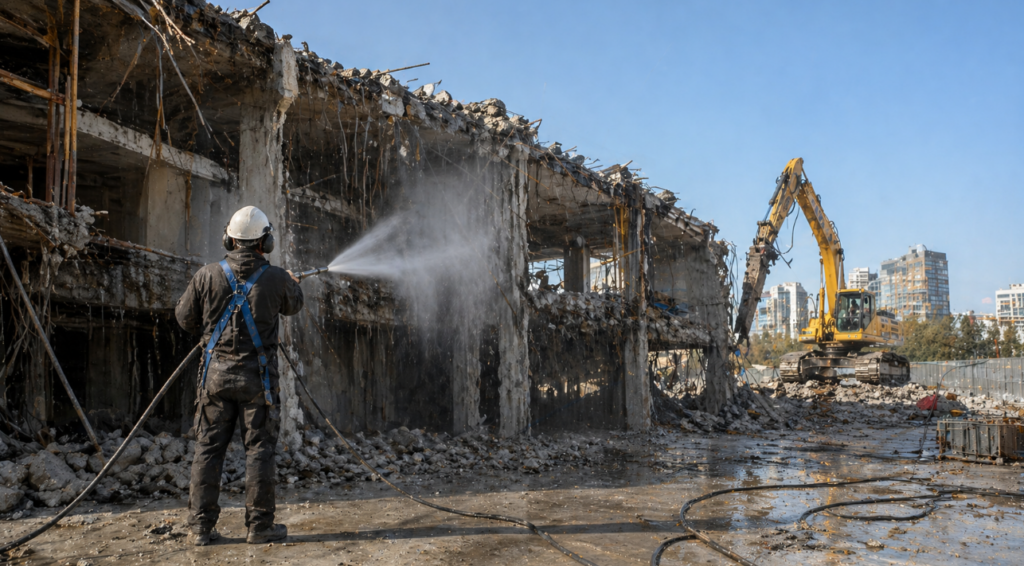

Construction and concrete demolishers
In bridge reinforcement or renovation of old buildings, this group uses high-pressure water jets for concrete stripping and steel rust removal. Compared with mechanical crushing, high-pressure pump operation has no vibration and no dust, which is the first choice for construction in sensitive urban areas.
high pressure water jet pump characteristics
Ultra-high pressure stripping efficiency
The maximum output pressure can reach 2800 bar, which can instantly crush the hard scale layer. Compared with the traditional physical scraping method, the high-pressure water jet pump can increase the cleaning speed by 500, ensuring the cleanliness of white metal in ship rust removal and chemical pipeline cleaning.

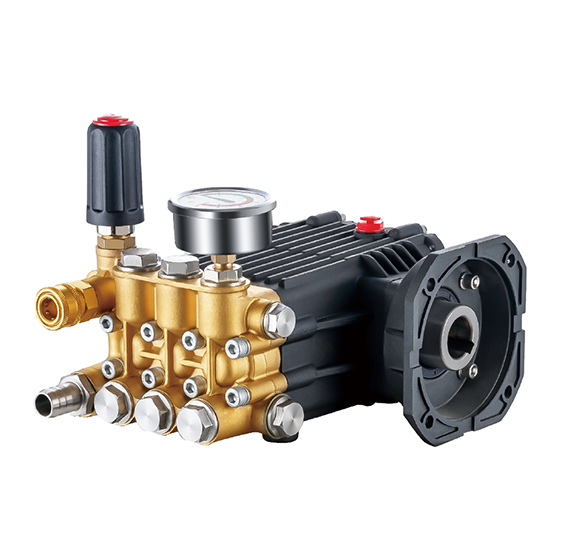

Industrial-grade corrosion-resistant pump head
The overall forged high-strength stainless steel pump head, with high-purity ceramic plunger, effectively resist cavitation corrosion in the process of fresh water or sea water circulation. Under continuous high load environment, the fatigue life of the core components of the equipment is extended by more than 3000 hours.
Precision pressure control system
equipped with high sensitivity relief valve and control panel, pressure regulation accuracy control within 5 bar. This allows the operator to fine-tune pressure matching for working surfaces of different strengths, such as delicate heat exchanger bundles or hard building facades.
Large flow cleaning capacity
supports a large flow output of up to 1000 liters per minute, and with a professional rotating nozzle, it can generate a strong scouring force in a large municipal drainage pipe network with a diameter of 2 meters, and realize one-time removal of silt and deposited gravel. Effect.
Vertically integrated manufacturing system
from the core components of the high-pressure pump to the assembly of the whole machine are completed in the Winspan factory, and the part adaptation error is less than 0.02mm. This precision manufacturing reduces vibration and heat loss during operation, and increases the energy efficiency of the whole machine by more than 15%.
Reliable operation in extreme environments
the equipment can be equipped with industrial-grade protective cage and heavy-duty mobile chassis to adapt to docks, field and high-temperature industrial workshops. The equipped intelligent cooling system ensures that the equipment can still maintain 24 hours of continuous operation without downtime in a high temperature environment of 45 degrees Celsius.
Detailed structural parameters of high-pressure water jet pump
| Specifications | Commercial Series | Industrial Series | Ultra High series |
| Pressure range | 50 – 500 bar | 500 – 1500 bar | 1500 – 2800 bar |
| Maximum flow | 15 – 40 liters per minute | 40 – 120 liters per minute | 120 – 1000 liters per minute |
| Drive power | 7.5 – 22 kW | 30 – 90 kilowatts | 110 – 400 kilowatts |
| Transmission method | Belt drive or direct drive | Gearbox transmission | Heavy-duty coupling drive |
| Sealed structure | Composite water seal system | Forced cooling seal | Dynamic high-pressure water seal |
| Water intake requirements | Tap water or filtered water | Industrial purified water | 5-micron finely filtered water |
High pressure water jet pump comparison point
The Winspan high-pressure water jet pump adopts self-developed high-pressure end technology, and the internal flow channel of the pump head is optimized by fluid mechanics, which effectively reduces the impact resistance of water flow. In addition, our standard high-performance unloading valve eliminates line pressure pulsations at the moment of gun shutdown, reducing the instantaneous shock load on the system by 85%.
An inefficient alternative to heavy scale cleaning
for the high hardness scale that cannot be removed by traditional brushing, a high-pressure water jet pump is Winspan to generate a supersonic jet using kinetic energy conversion, which completely solves the pain point of the old paint layer and stubborn scale in ships and chemical plants.
Risk control of corrosion shutdown in complex environment
for operation in coastal areas or corrosive industrial areas, the Winspan provides an all-stainless steel pump head matching scheme to solve the problem that ordinary cast iron pump head is easy to rust and cause production line shutdown in high salt spray environment.
Diversified power demand matching scheme
For municipal construction scenarios without power supply in the field, the Winspan provides diesel-driven pump sets equipped with intelligent controllers to solve the pain points of power access difficulties on the construction site and insufficient power of traditional small pumps.
high pressure water jet pump instructions
Pre-operation safety inspection
check the crankcase lubricating oil level and the integrity of the water inlet filter to ensure that the water inlet flow rate is greater than 1.5 times the rated flow rate of the pump to prevent cavitation damage of the pump body.
Exhaust and start-up of the system
after opening the inlet water source, start the motor or diesel engine for low-pressure operation first. Only after the water flow at the outlet of the high-pressure gun is stable and free of bubbles can the pressure regulating valve be gradually rotated to boost the pressure.
Guide for progressive pressure adjustment
It is strictly forbidden to jump to the highest pressure in an instant during operation. According to the hardness of the cleaning object, the amplitude of 50 bar per step should be increased steadily until the ideal cleaning effect is achieved.
Shutdown and depressurization process
after the operation, first relieve the system pressure to zero through the pressure regulating valve, then close the power source and continuously pull the water gun trigger to release the residual pressure, and finally drain the accumulated water in the pump.
