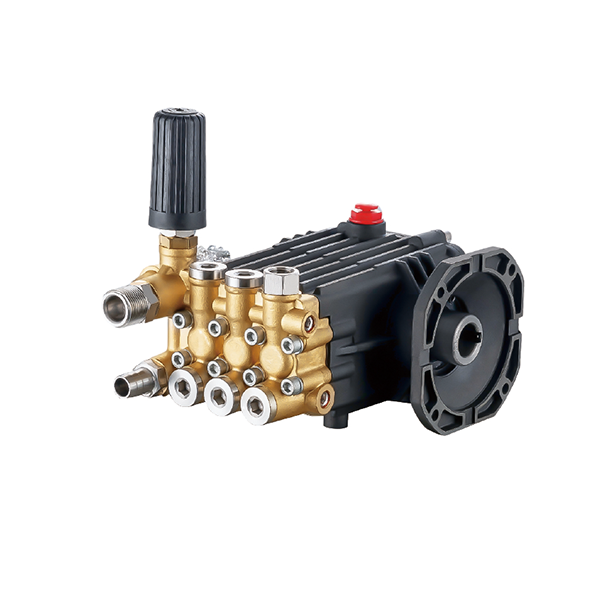

High Pressure Pump For Misting System Budget-friendly Choice
The Winspan high-pressure atomizing pump provides stable 1000 PSI industrial-grade pressure to ensure that water molecules reach 5-10 microns of ultrafine atomization, achieving efficient cooling without wetting the environment. As a source manufacturer with an independent production base of 30,000 square meters, Winspan realizes the whole process control from the pump head to the whole machine, providing you with highly competitive direct selling prices and more agile mass customization services.
High pressure pump for misting system for people

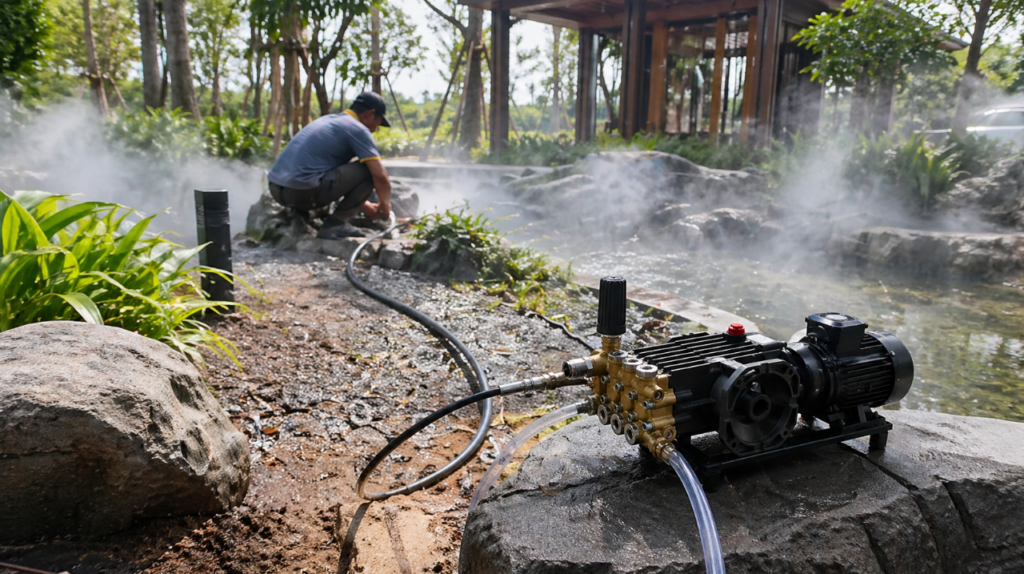

Landscape engineering contractor
responsible for the atomization landscape design and installation of high-end hotels, tourist attractions, villa gardens, the need for long-term stability, support for mass customization and has a very high cost-effective pump core components.

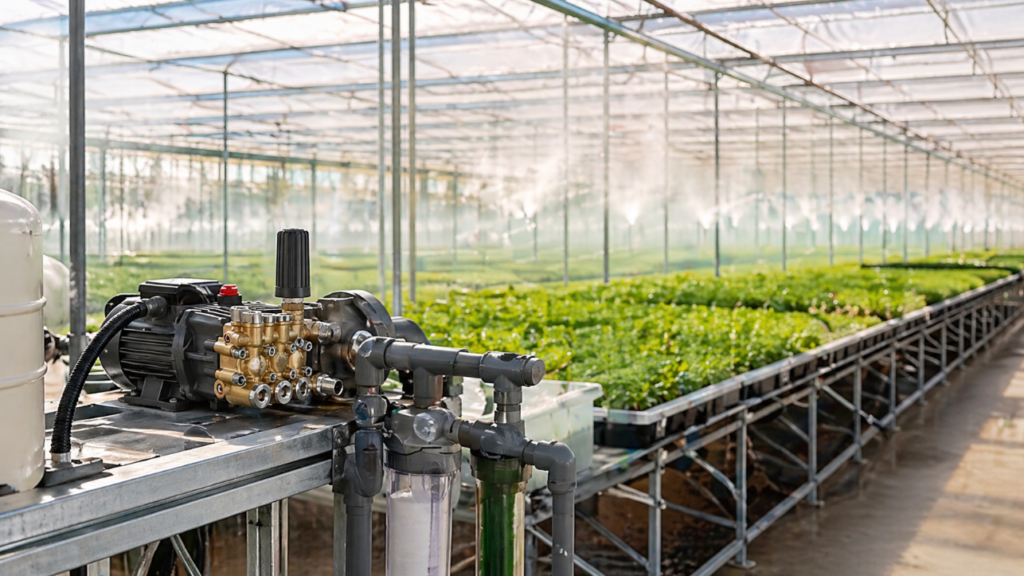

Greenhouse agriculture integrator
focus on modern agricultural automation system, through the integration of high-pressure pump group to achieve the precise control of humidity in the greenhouse and summer cooling, to create an ideal growth environment for seedlings and high economic value crops.

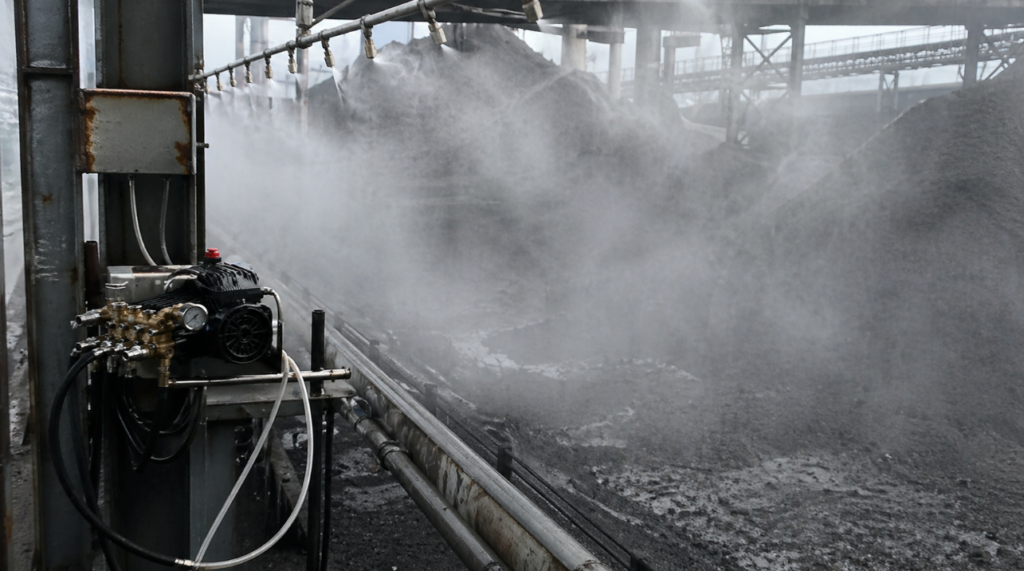

Environmental protection dust removal engineering company
in the quarry, coal mine transfer station and other dust-intensive industries, the use of the pump set to build a high-pressure spray dust removal network, through fine droplets to capture air particles, to help enterprises to meet the emission standards.

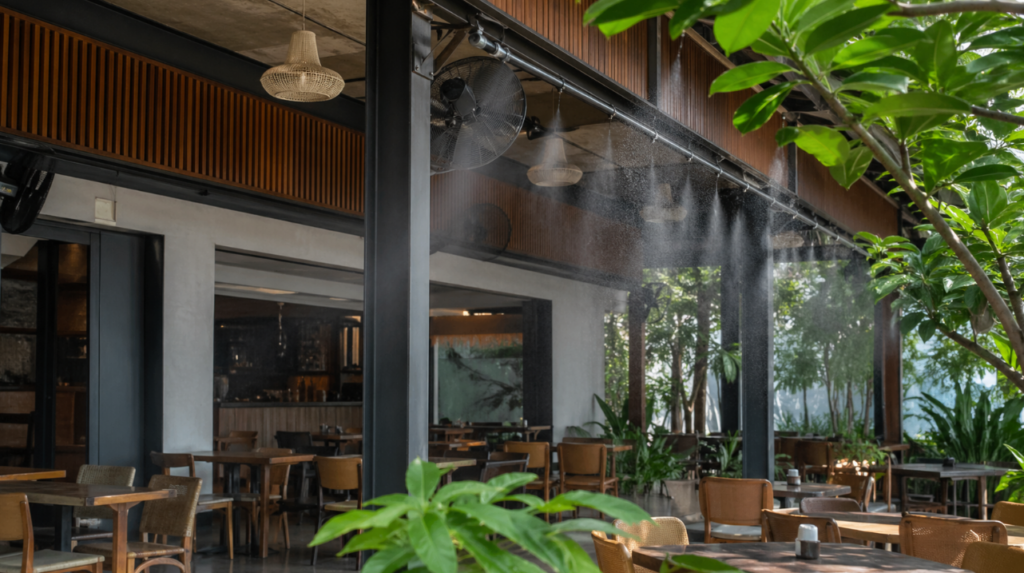

Commercial Space HVAC Company
Provide outdoor cooling solutions for commercial scenes such as cafes and open-air restaurants, focusing on low-noise performance and installation convenience of equipment to improve the comfort of the end user’s consumption environment.
high pressure pump for misting system Features
Industrial-grade 3 plunger design
3 plunger pump structure is adopted, which greatly reduces pressure fluctuation compared with single plunger pump, ensures uniform mist discharge from nozzle, and effectively eliminates intermittent beating during injection.
Precision ceramic plunger components
plunger hardness is extremely high and the surface is smooth, wear resistance than ordinary stainless steel to enhance more than six times, even in the continuous twenty-four hours of operation can also maintain a very low seal loss rate.
Built-in intelligent pressure relief technology
the system will automatically release the residual pressure in the pipeline at the moment of shutdown, prevent the sprinkler from dripping due to residual pressure, and perfectly protect the surrounding electronic equipment, furniture or ground from moisture erosion.
Ultra-quiet transmission system design
By optimizing the crankshaft connecting rod mechanism and matching the high-efficiency induction motor, the operating noise is controlled within 55 decibels, which is very suitable for restaurants and other commercial places with strict sound environment requirements.
Multiple automatic safety protection
integrated water induction and thermal overload protection switch, when the system detects water interruption or motor overheating, it will automatically cut off the power supply to prevent the core power components from being scrapped due to dry rotation of the pump body.
Integrated forged brass pump head
The pump body is made of high-strength forged brass, which has a 40% higher compressive strength than traditional casting processes to ensure that there is no risk of metal fatigue or water seepage in a long-term high-pressure environment.
Detailed Structured Parameter Table for High Pressure Pump for Mistling System
| Technical indicators | Industrial Grade Specifications Details |
| Product core keywords | high pressure pump for misting system |
| Rated working pressure | 70 Bar / 1000 PSI |
| Number of compatible nozzles | 20 to 150 pieces (depending on the model) |
| Motor power options | 0.55 kW to 2.2 kW |
| Power supply voltage specifications | 220V/50Hz or 110V/60Hz |
| Filtration accuracy | Five-micron built-in fine filter |
| Driver connection method | Direct-drive induction drive |
| Interface thread specifications | 3/8-inch quick-connect or internal thread interface |
| Intelligent control module | Digital timing and cycle control system |
High pressure pump for misting system comparison point
The winspan high pressure pump for misting system reduces power consumption by 10% under the same flow output by optimizing the structure design of the internal flow channel, and the heat accumulation rate is significantly lower than that of similar competitors in the market. In addition, the winspan adopts a modular circuit design, and all control components have industrial-grade moisture-proof coatings, which can maintain tens of thousands of high-frequency stable starts in a spray environment with a humidity of up to 95%.
Eliminate dripping from the end nozzle
in view of the problem of dripping pollution caused by residual pressure of the pipeline after the system is shut down, the winspan integrates automatic pressure relief technology to ensure that the environment is dry even when the system is shut down.
Greatly extend the maintenance cycle
in view of the pain point of frequent water leakage caused by the easy wear of ordinary pump sealing rings, winspan use high-hardness ceramic plungers with self-lubricating seals to increase the routine maintenance interval to 2,000 hours.
Solve commercial noise complaints
In response to the problem of excessive noise from cooling equipment interfering with customer conversations, the winspan mute pump set achieves laboratory-level noise reduction, which is almost imperceptible even when installed in a balcony corner.
high pressure pump for misting system instructions
Pre-inspection of water inlet connection
ensure that the water source is clean and connected with the attached filter. It is strictly prohibited to open the high-pressure pump in the anhydrous state to prevent the internal seal from being damaged by high temperature due to dry grinding.
Time parameter configuration
set the spray duration and intermittent time through the digital panel. It is recommended to set a shorter cycle during the first commissioning to observe the sealing performance of each pipeline connection under high pressure load.
System air evacuation
open the pump set before installing the last nozzle, use the water flow to completely exhaust the residual air in the channel, and install the end nozzle to enter the atomization mode after the water flow is stable.
Routine cleaning and maintenance
according to the local water quality, it is recommended to check and clean the water inlet filter screen once a month, and check the lubricating oil level of the crankcase every 500 hours of operation to ensure smooth mechanical transmission.
