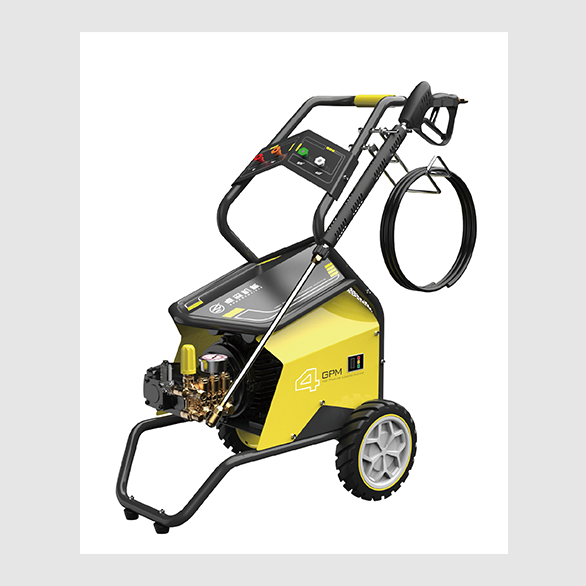

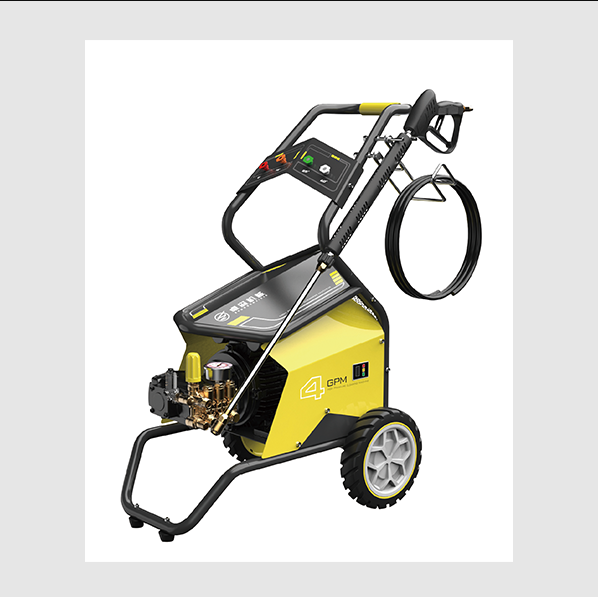

The Brute Pressure Washer offers consistent high pressure output with Briggs & Stratton industrial engines, making it the ideal choice for reliability and return on investment in heavy duty cleaning operations. As its own source manufacturing plant, WINGSPAN has a complete production line and R & D team to support mass customization procurement to ensure that we can provide you with more competitive ex-factory prices and fast logistics delivery.

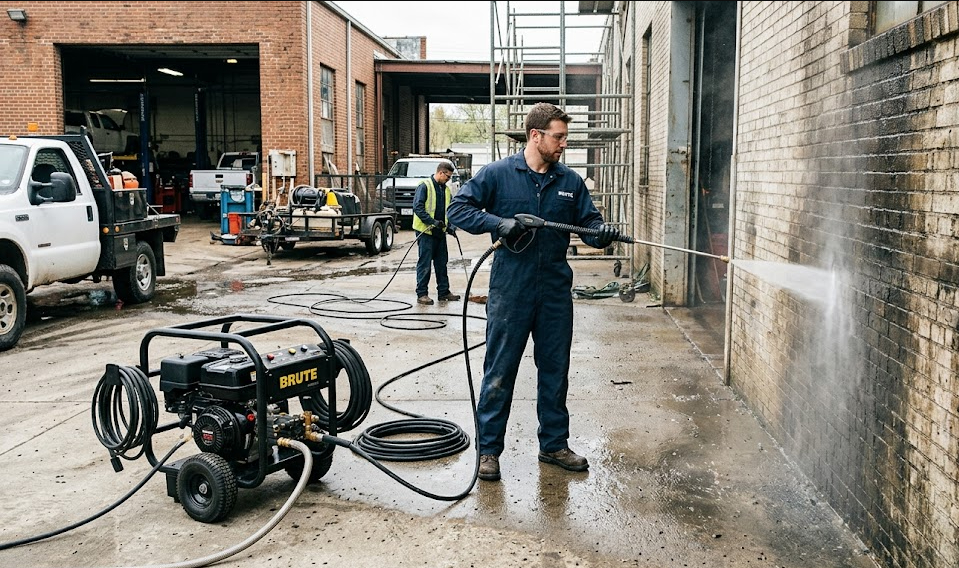

For professional cleaning teams that need to travel to different sites around the clock, this equipment provides extremely high mobility and high-pressure flushing power, and a single person can complete the cleaning tasks of large commercial exterior walls or parking lots.

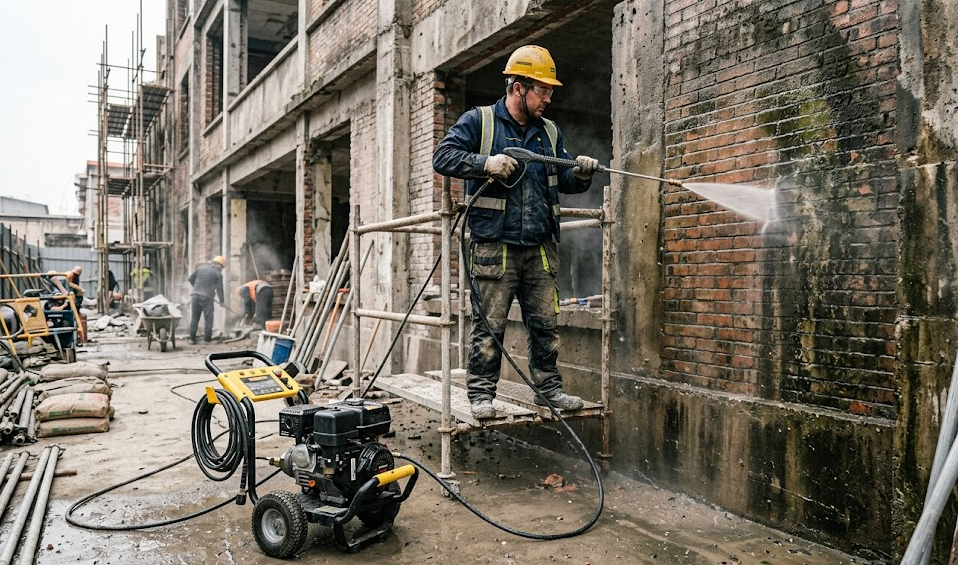

specially designed for cleaning up concrete mixing tank residue, scaffolding paint stripping and bridge surface pretreatment, resistant to the harsh dust and drop impact environment of the construction site.

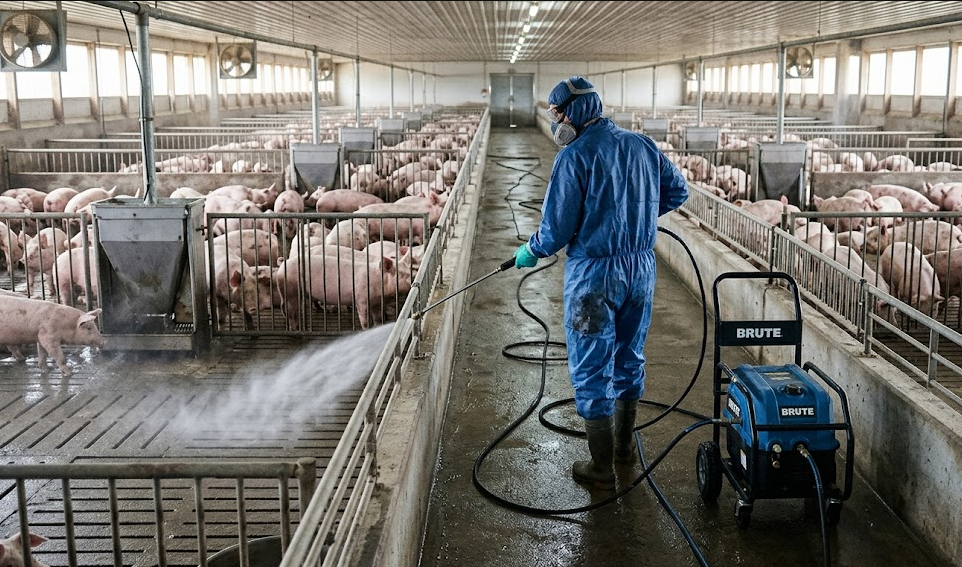

to help large pig farms, chicken coops to achieve rapid epidemic prevention and killing work, large flow output can quickly clean the ground excrement and stubborn stains, significantly shorten the environmental clean-up cycle and reduce labor costs.

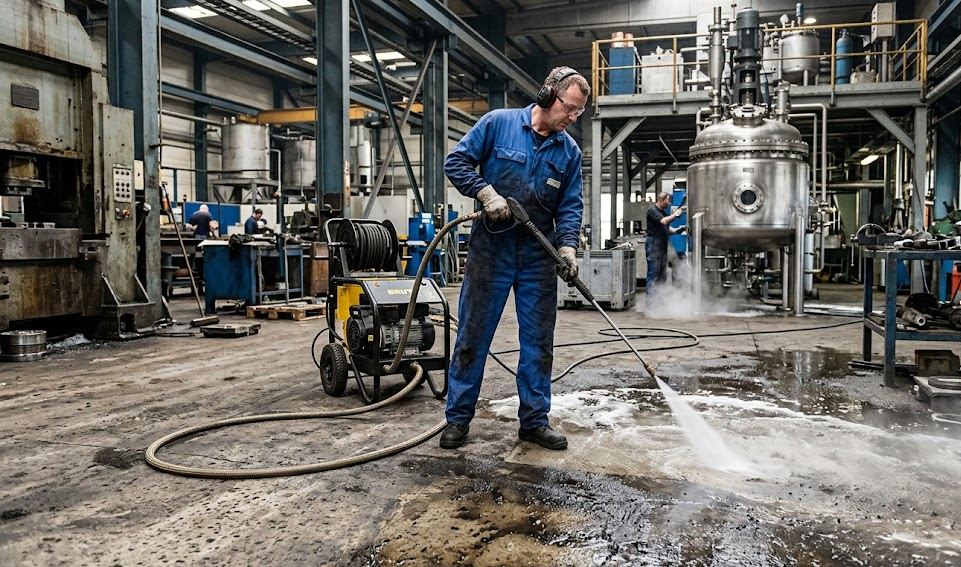

suitable for degreasing on the floor of the factory workshop, external cleaning of large reactors and daily maintenance of fleet vehicles, providing immediate and powerful power support in areas without power supply.
equipped with 2100 series professional engines with a torque of up to 21 Nm, ensuring that the output pressure is still maintained without attenuation under 8 hours of continuous high-intensity operation, significantly reducing the risk of downtime due to insufficient power.
the pump head adopts anti-wear solid ceramic plunger, with precision forged brass head, its heat dissipation efficiency is 30% higher than that of ordinary aluminum pump, effectively preventing the seal from overheating and deformation, and prolonging the overall service life of the pump for more than 3 years.
the pump head speed is reduced to below 1450 revolutions through belt drive, which can reduce 50% of operating vibration and frictional heat generation compared with direct-connected models, greatly reduce bearing wear rate, and ensure stable operation of equipment in high temperature environment.
integrated advanced decompression system, the starting pull is reduced by about 40% compared with similar products, and the 1 pull-up can be realized even in the low temperature environment in the north, which greatly optimizes the operation experience and work efficiency of on-site operation.
Standard large-size non-pneumatic tires have excellent grip and shock absorption. Even on construction sites with gravel or muddy trails, a single person can easily move hundreds of kilograms. Body.
supports accurate adjustment of water pressure output according to the material of the cleaning object, avoids damage to fragile surfaces due to excessive pressure, and the external design is more convenient for daily maintenance and rapid replacement, thus reducing the technical threshold for later maintenance.
| Technical indicators | Detailed specifications |
| Product Model | WINGSPAN-BR4000D |
| Core Power | Briggs & Stratton 420cc OHV |
| Rated pressure | 275 Bar / 4000 PSI |
| Maximum flow | 15.1 L/min / 4.0 GPM |
| Transmission method | Belt drive/reduction gearbox |
| Liquid suction function | Integrated chemical inhalation system |
| Inlet water filtration | 50-mesh stainless steel removable and washable filter screen |
| Startup method | Manual recoil start/electric start optional |
| Total weight | 75 kg |
The WINGSPAN Brute Pressure Washer uses a reinforced steel chassis and heavy industrial components, and its structural strength far exceeds that of domestic and light commercial models. In the long-term operation test, the continuous operation stability of the equipment is 25% higher than the industry average, especially in the treatment of oil field heavy scale and long-distance pipe network flushing, showing a strong pressure drop control ability. In addition, this product achieves excellent self-priming depth and pressure stabilization effect by optimizing the design of the inlet channel. Even in remote construction sites with unstable water source pressure, stable self-absorption at a depth of 5 meters can be achieved through the water storage bucket, which solves the pain point that traditional equipment is highly dependent on tap water pressure.
WINSPAN industrial cleaning machine solves the problem of heat accumulation generated when the equipment stops gun bypass circulation by integrating thermal protection discharge valve and low-speed pump design, and effectively prevents leakage of water seal caused by high-temperature melting.
The Brute Pressure Washer offers consistent high pressure output with Briggs & Stratton industrial engines, making it the ideal choice for reliability and return on investment in heavy duty cleaning operations. As its own source manufacturing plant, WINGSPAN has a complete production line and R & D team to support mass customization procurement to ensure that we can provide you with more competitive ex-factory prices and fast logistics delivery.
4000 PSI
Maximum pressure
4.0 GPM
Output Flow
Bergus 2100 series
Engine
equipped with 2100 series professional engines with a torque of up to 21 Nm, ensuring that the output pressure is still maintained without attenuation under 8 hours of continuous high-intensity operation, significantly reducing the risk of downtime due to insufficient power.
the pump head adopts anti-wear solid ceramic plunger, with precision forged brass head, its heat dissipation efficiency is 30% higher than that of ordinary aluminum pump, effectively preventing the seal from overheating and deformation, and prolonging the overall service life of the pump for more than 3 years.
the pump head speed is reduced to below 1450 revolutions through belt drive, which can reduce 50% of operating vibration and frictional heat generation compared with direct-connected models, greatly reduce bearing wear rate, and ensure stable operation of equipment in high temperature environment.
integrated advanced decompression system, the starting pull is reduced by about 40% compared with similar products, and the 1 pull-up can be realized even in the low temperature environment in the north, which greatly optimizes the operation experience and work efficiency of on-site operation.
Standard large-size non-pneumatic tires have excellent grip and shock absorption. Even on construction sites with gravel or muddy trails, a single person can easily move hundreds of kilograms. Body.
supports accurate adjustment of water pressure output according to the material of the cleaning object, avoids damage to fragile surfaces due to excessive pressure, and the external design is more convenient for daily maintenance and rapid replacement, thus reducing the technical threshold for later maintenance.
| Technical indicators | Detailed specifications |
| Product Model | WINGSPAN-BR4000D |
| Core Power | Briggs & Stratton 420cc OHV |
| Rated pressure | 275 Bar / 4000 PSI |
| Maximum flow | 15.1 L/min / 4.0 GPM |
| Transmission method | Belt drive/reduction gearbox |
| Liquid suction function | Integrated chemical inhalation system |
| Inlet water filtration | 50-mesh stainless steel removable and washable filter screen |
| Startup method | Manual recoil start/electric start optional |
| Total weight | 75 kg |
For professional cleaning teams that need to travel to different sites around the clock, this equipment provides extremely high mobility and high-pressure flushing power, and a single person can complete the cleaning tasks of large commercial exterior walls or parking lots.
specially designed for cleaning up concrete mixing tank residue, scaffolding paint stripping and bridge surface pretreatment, resistant to the harsh dust and drop impact environment of the construction site.
to help large pig farms, chicken coops to achieve rapid epidemic prevention and killing work, large flow output can quickly clean the ground excrement and stubborn stains, significantly shorten the environmental clean-up cycle and reduce labor costs.
suitable for degreasing on the floor of the factory workshop, external cleaning of large reactors and daily maintenance of fleet vehicles, providing immediate and powerful power support in areas without power supply.
