Wingspan Tech

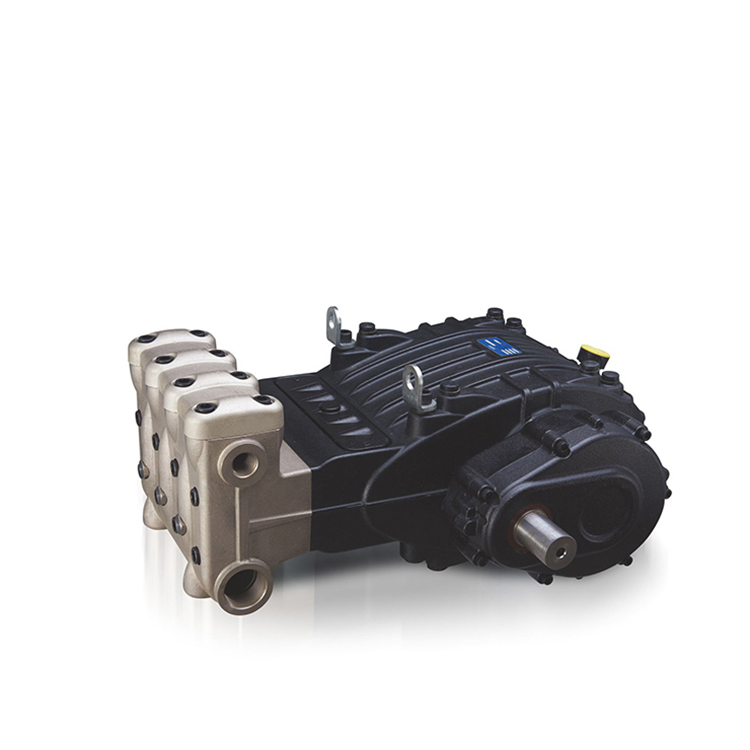

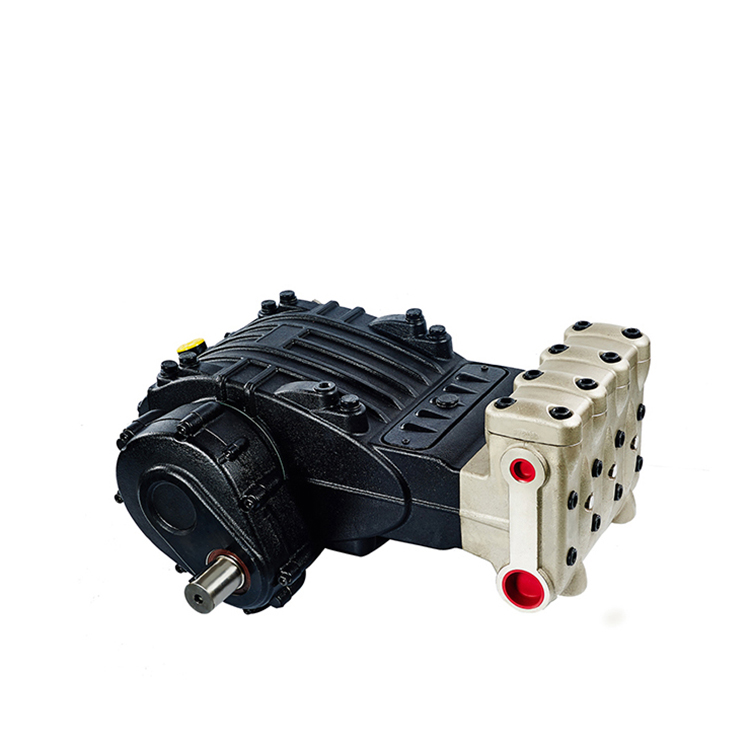

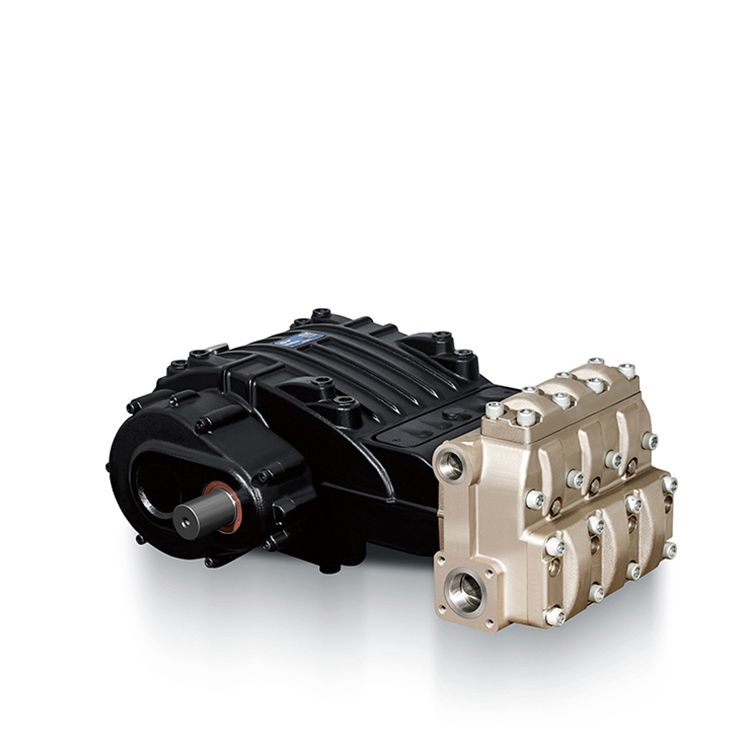

MW, MW255
Italian core technology, 90% of the components use high‑quality imported materials, resulting in high water‑output efficiency and stable working pressure. The compact installation dimensions make it highly regarded in the sanitation industry—especially for sweeper trucks—and in applications such as mining.
Pump Head: Cast iron
Flow Rate: 85-328
Max Pressure: 350-100-210Bar
Speed: 1000/1500/1800
Gearbox: Speed: with
Key attributes
| Input speed Reduction gearbox speed ratio Water pump speed | r.p.m | 1000 | 1500 | 1800 | ||||||
| i | 1.52 | 1.62 | 1.72 | 1.83 | 2.24 | 1.83 | 2.24 | 2.24 | ||
| r.p.m | 658 | 617 | 581 | 546 | 446 | 820 | 670 | 804 | ||
| Pressure(bar) | Model | Output flow (L/min)and required power(kW) | ||||||||
| 350 | MW28 | L/min | 85 | 80 | 75 | 71 | 58 | 106 | 87 | 104 |
| kW | 58 | 55 | 52 | 48 | 40 | 73 | 59 | 71 | ||
| 300 | MW32 | L/min | 111 | 104 | 98 | 92 | 75 | 138 | 113 | 136 |
| kW | 65 | 61 | 58 | 54 | 44 | 81 | 67 | 80 | ||
| 240 | MW36 | L/min | 141 | 132 | 124 | 117 | 95 | 175 | 143 | 172 |
| kW | 66 | 62 | 58 | 55 | 45 | 82 | 67 | 81 | ||
| 210 | MW40 | L/min | 174 | 163 | 153 | 144 | 118 | 216 | 177 | 212 |
| kW | 72 | 67 | 63 | 59 | 48 | 89 | 73 | 87 | ||
| Input speed Reduction gearbox speed ratio Water pump speed | r.p.m | 1000 | 1500 | 1800 | ||||||
| i | 1.52 | 1.62 | 1.72 | 1.83 | 2.24 | 1.83 | 2.24 | 2.24 | ||
| r.p.m | 658 | 617 | 581 | 546 | 446 | 820 | 670 | 804 | ||
| Pressure(bar) | Model | Output flow(L/min)and required power(kW) | ||||||||
| 155 | MW245 | L/min | 220 | 206 | 194 | 182 | 149 | 274 | 224 | 269 |
| kW | 67 | 63 | 59 | 55 | 45 | 83 | 68 | 82 | ||
| 125 | MW250 | L/min | 271 | 254 | 240 | 225 | 184 | 338 | 276 | 332 |
| kW | 66 | 62 | 59 | 55 | 45 | 83 | 68 | 81 | ||
| 100 | MW255 | L/min | 328 | 308 | 290 | 272 | 223 | 409 | 334 | 401 |
| kW | 64 | 60 | 57 | 53 | 44 | 80 | 66 | 79 | ||
