How To Change Power Washer Nozzle

In order to safely and efficiently replace the nozzle of the high-pressure cleaner, must be to turn off the machine first, and then pull the trigger of the spray gun to release all the accumulated water pressure. Only when the system is completely depressurized can you hold the barrel and pull back the spring clip (usually the brass or stainless steel ring) located at the tip of the barrel. Keep the ferrule backward, remove the current nozzle, and then insert the new color code nozzle firmly until it “bottoms out. Finally, loosen the sleeve to reset and lock the nozzle, and then pull the nozzle firmly to ensure that it has been clamped. If you don’t relieve the pressure first or forget to check the lock status, the small nozzle may become a dangerous “warhead”.

Why “Pressure Relief” Is A Step That Absolutely Cannot Be Saved

The high-pressure washer works under huge hydraulic power. What many people don’t realize is that even if the motor or engine has stalled, the high-pressure water is still trapped in the hose and the gun barrel. If you skip the “pull the trigger” step, the consequences are often very troublesome:

• Physical resistance: Internal pressure will hold up against the nozzle and locking mechanism, making it almost impossible for you to pull the spring clip. Hard pulling is useless at this time.
• Seal damage: If you force open the ferrule under high pressure, it is easy to damage the internal O-ring. Trust me, you don’t want to deal with a leaking joint in the middle of the job.
• Safety hazard: When your hand is near the head of the gun, a sudden pressure release may cause injury. Be sure to wait until the current becomes a trickle before your hand touches that metal joint.

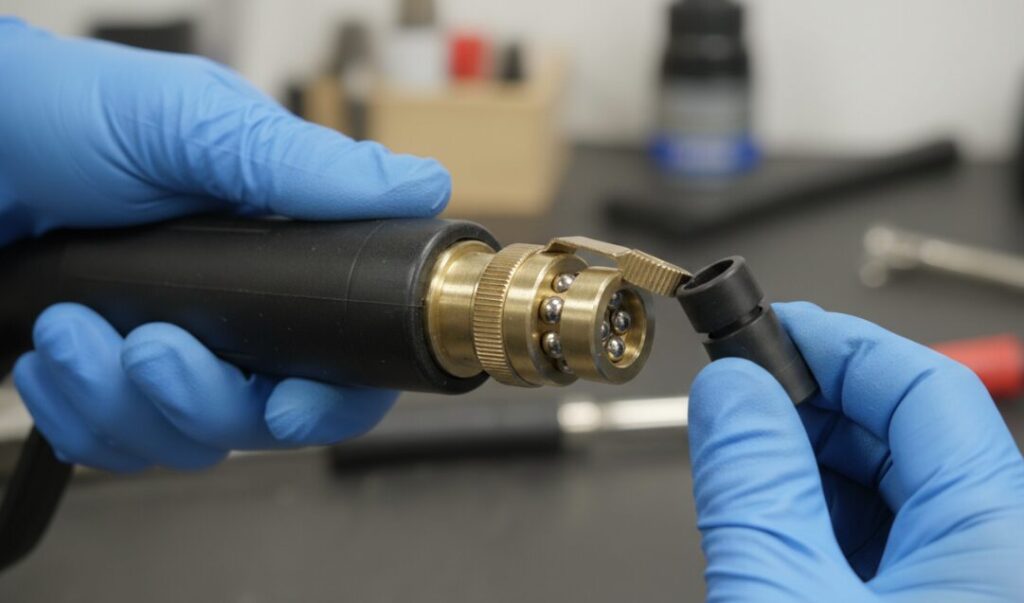

Fix The “Quick-Connect” Connector Mechanism

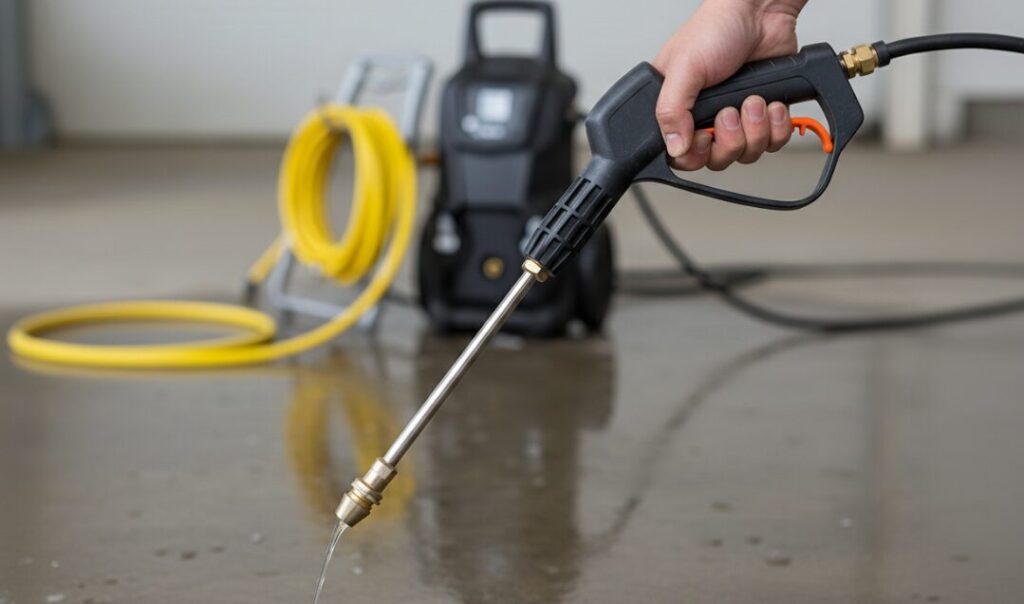

• Pull back the card sleeve: you have to hold the barrel firmly with 1 hand and retract the ring of the head with the other hand. This action retracts the small ball bearing inside the fitting, allowing the nozzle to slide in and out.
• Insert new nozzle: When inserting a new nozzle, the key is to push it to the end. You must feel the nozzle fully against the back of the joint. If you don’t insert it deep enough, those ball bearings won’t snap into the groove of the nozzle plug.

The “Tug Test”: Make Sure You Locked

The last step in the process, in terms of security, is probably the most important: checking the lock. When you release the ferrule, the spring should spring it back to the forward position. But just seeing with your eyes is not enough. You have to give the nozzle a hard tug.

Why drag? Because the mud, gravel or debris on the construction site sometimes jam the ferrule, making it look like it is locked, but in fact it is not completely in place.

Consequences of failure: If you don’t make sure the nozzle locks, it’s a stealth bomb. When you pull the trigger again, the water pressure, which usually exceeds 2000 psi, momentarily impacts the nozzle. If the locking bearing does not bite, the nozzle will shoot out like a bullet.

Nozzle Replacement Process Summary

O-Series High Pressure Washer 220V

The durable ceramic pump and powerful four-stage motor provide high-performance cleaning power, with adjustable pressure, support for customized voltage and power.

Get Quote

O-Series High Pressure Washer 220V

380V 1500Bar Water Blaster

1450 RPM ultra-high pressure water jet pump, high cost performance, suitable for 50Hz voltage. It’s a great tool for removing rust and deburring in factories.

Get Quote

380V 1500Bar Water Blaster

Diesel Power High Pressure Cleaner

The pump unit is the core component of a cleaning machine or water treatment system. Composed of a high-pressure plunger pump and an electric motor

Get Quote

Diesel Power High Pressure Cleaner

Foam Cannon for car washing

Foam Cannon S V3.0 (Thicker Snow Foam Technology) with 1/4 Inch Quick Connector for Pressure Washer, 34 oz Bottle (V3.0 (1/4″ Quick Connector) + SOAP Sample)

Get Quote

Foam Cannon for car washing

To make it easy to remember and make sure you never miss a step, follow this simple muscle memory routine every time you change the color nozzle:

1. Power Down: Turn the washing machine engine or motor switch to “Off”.
2. Pressure relief : Pull the trigger until no more water is spouting.
3. Unlock: Pull the brass/stainless steel sleeve backwards.
4. Swap: Unplug the old nozzle and firmly insert the new nozzle.
5. Lock and test: loosen the sleeve and pull the nozzle firmly to confirm the lock.

Strictly following these steps will make every nozzle change silky smooth, protecting both your equipment and your personal safety.
